Samsung Wireless Printer Setup for Windows



This article describes how to Samsung Wireless Printer Setup for Windows, follow the steps below


The steps that you must follow to Samsung Wireless Printer Setup With Access Point for Windows

Setup From the computer:
  • Access point via USB cable.
  • Access point without a USB cable (recommended)

Setup From the machine’s control panel:
  • Machines with a display screen.
  • Using the menu button.

The steps that you must follow to Samsung Wireless Printer Setup Without Access Point for Windows

Setup From the computer:
  • Ad hoc via USB cable.

Samsung Wi-Fi Direct setup:

Samsung Wireless Printer Setup for PC Windows Laptop/Notebook/Computer


Machines with a display screen



Using the menu button

Before beginning, you will need to understand the network name (SSID) of your wireless network and the network secret if it is encrypted. This details was set when the gain access to point (or cordless router) was installed. If you do not know about your cordless environment, please ask the person who established your network.

After completing the wireless network connection, you need to install a machine driver to print from an application (see Installing Samsung driver over the network).


Re-connecting to a network
When the wireless function is off, the maker automatically tries to re-connect to the gain access to point (or cordless router) with the previously used wireless connection settings and address.

Canceling the connection process
To cancel the wireless network connection when the machine is linking to the cordless network, press and release the (Stop/Clear) on the control board. You have to wait 2 minutes to re-connect to the wireless network

Disconnecting from a network.
To disconnect the wireless network connection, press the (WPS) button on the control panel for more than two seconds.

When the Wi-Fi network is in idle mode: The machine is right away disconnected from the cordless network and the WPS LED shuts off.

When the Wi-Fi network is being utilized: While the maker waits till the present job is ended up, the light blinks fast on the WPS LED. Then, the cordless network connection is automatically detached and the WPS LED turns off.

Samsung Wireless Printer Setup for Windows

Download and install Samsung Easy Wireless Setup program

Access point via USB cable

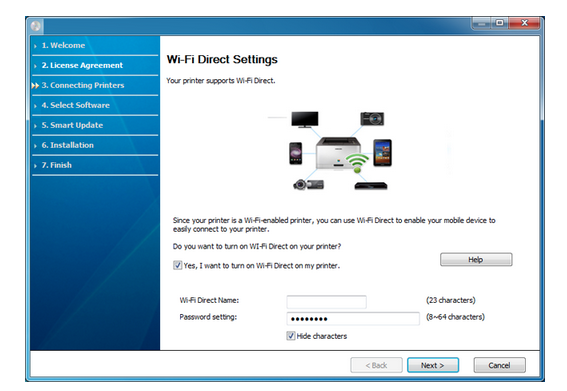

Wi-Fi Direct option appears on the screen only if your printer supports this feature.
Can start to build Wi-Fi Direct by utilizing Samsung Easy Printer Manager (see Establishing Wi-Fi Direct).
Wi-Fi Direct Call: The default Wi-Fi Direct Name is the design name and the optimum length is 22 characters.
Password setting is the numerical string, and the size is 8 ~ 64 characters.

When the cordless network established is finished, detach the USB cable television in between the computer system and machine. Click Next.

Follow the guidelines in the installation window.

Access point without a USB cable (recommended)




When the Samsung wireless network set up is completed, click Next.

Follow the instructions in the installation Wireless Printer Setup for Windows.

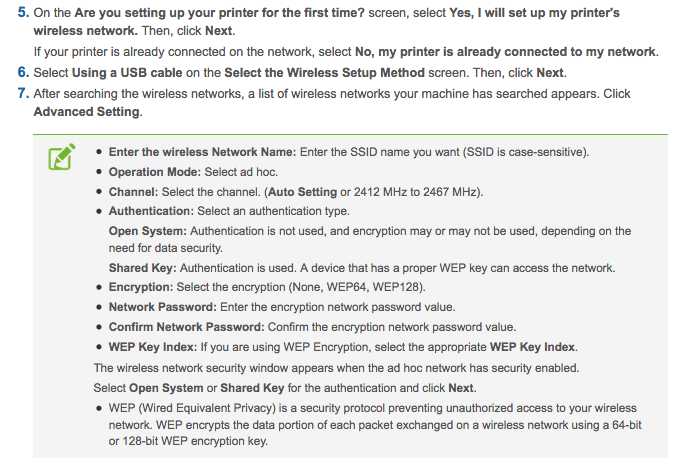

Ad hoc via USB cable

If you do not have an access point (AP), you may still connect the maker wirelessly to your computer system by establishing an ad-hoc wireless network by following the simple actions below:



The Samsung Wireless Network Setting Complete window appears. Click Next.
When the cordless Samsung network settings are completed, disconnect the USB cable television between the computer and machine. Click Next.

Follow the guidelines in the installation window.
